STANDARDS

Individual Products are in accordance with the appropriate British Standards.

  • Fittings (metric) ISO 14236, EN 12201, DIN 8076
  • Threaded Fittings ISO 7/1, DIN 2999, BS 21
  • Valves ISO 7/1, DIN 2999



WRAS APPROVAL



TEMPERATURE & PRESSURE RELATIONSHIP

The fittings are not to be used for hot water and should not exceed 20°C although they will withstand the same temperatures as polyethylene pipe. With increased temperature adjust pressure down as detailed below.

 Temp oC  16 Bar  10 Bar
 -20  16  10
 0  16  10
 20  16  10
 30  13  8
 40  10  6
 50  8  5



QUALITY

Plimat’s commitment to quality is reflected by our operation of an independently assessed quality management system EN ISO 9001.



MATERIAL

Body - High performance Polypropylene Copolymer Nut – High performance Polypropylene Copolymer Insert – High performance Polypropylene Copolymer O-Ring – Nitrile Rubber (NBR) Split Ring – Acetal (POM)



CHEMICAL RESISTANCE

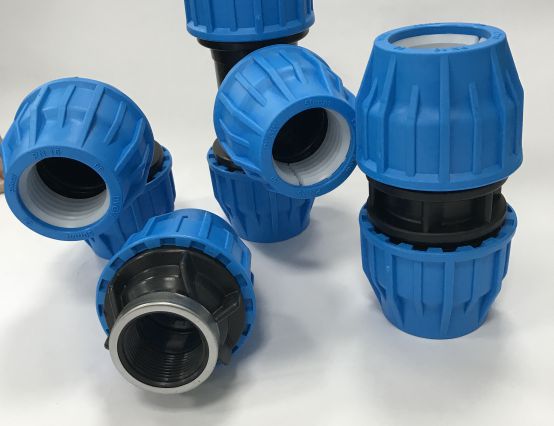

Plimat compression fittings are manufactured from Polypropylene with a split ring made from Acetal and NBR O’rings, which is suitable for water. For chemical applications please see chemical resistance chart.

Product Size Pressure
Fittings 20mm - 63mm 16 Bar (232 Psi)
Fittings 75mm - 110mm 12.5 Bar (181 Psi)

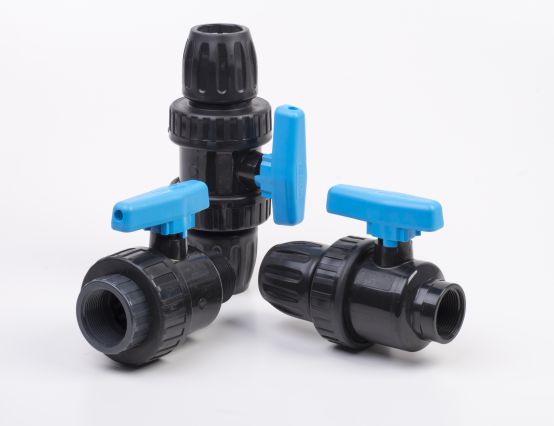

Valves 20mm - 63mm 10 Bar (145 Psi)
